D-Link

D-Link

D-Link is one of the world’s most widely known names in cost effective networking products. Whether it is for the home consumer, business or service provider D-Link take pride in offering award-winning networking products and services and will continue to lead the way in building networks for people around the world. From product design, performance, […]

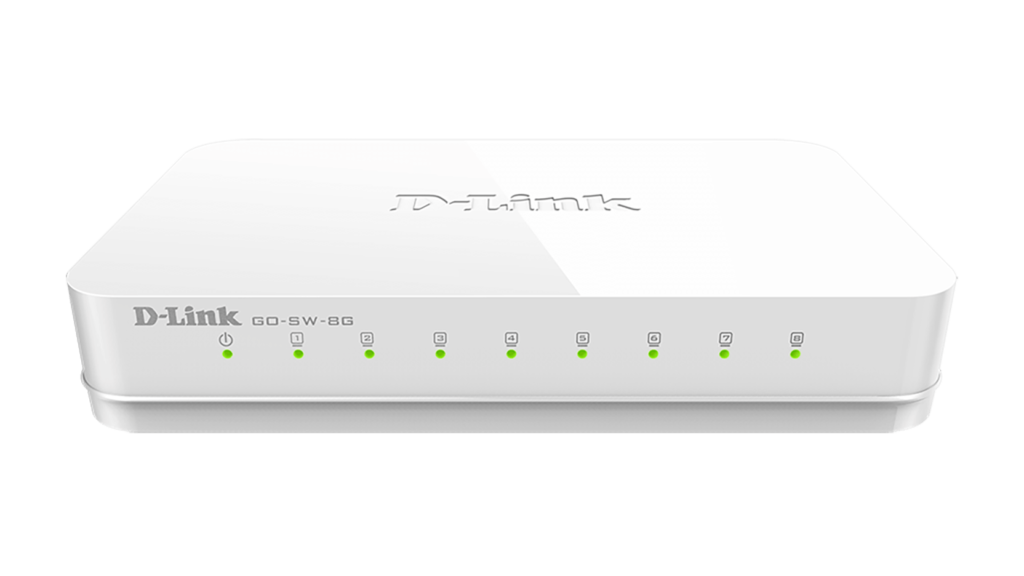

D-Link GO-SW-8G/B Easy Desktop Switch

8-Port GIGABIT EASY DESKTOP SWITCH
– 8-Port Gigabit Switch
– Auto MDI.MDIZ crossover for all ports
– Full/half-duplex for Ethernet / Fast Ethernet speeds
– Plug-and-play installation
– Energy Star Level V qualified
– D-Link Green (Automatic port powerdown for unused ports)

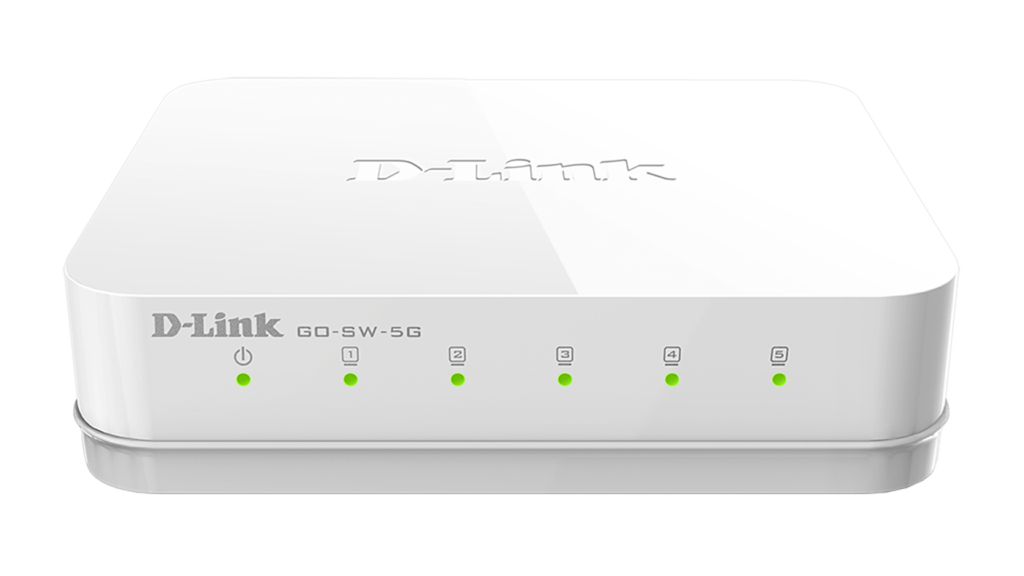

D-Link GO-SW-5G/B Easy Desktop Switch

5-Port GIGABIT EASY DESKTOP SWITCH
– 5-Port Gigabit Switch
– Auto MDI.MDIZ crossover for all ports
– Full/half-duplex for Ethernet / Fast Ethernet speeds
– Plug-and-play installation
– Energy Star Level V qualified
– D-Link Green (Automatic port powerdown for unused ports)

D-Link DXS-PWR700AC 10G Module

770 W AC modular power supply with front-to-back airflow

D-Link DXS-5000-54S/SI 10G Concentrator

48 x 10G SFP+ ports with 6 x 40G QSFP+ ports Fully Managed L3 10GbE Switch
– 48 x 10G SFP+ ports
– 6 x 40G QSFP+ ports
– 1 x USB 2.0 port
– 1 x mini-USB console port
– 1 x 10/100/1000BASE-T RJ-45 port OOB Management Port
– Switching Capacity 1.44 Tbps
– Max. Forwarding Rate 1.071 Bpps
– Operating Temperature 0 to 45 C

Note: Draft specifications subject to change

D-Link DXS-PWR300AC 10G Concentrator

DXS-PWR300AC for 3600/3400 Series Power Supply Module with Front-to-Back Airflow

D-Link DXS-3610-54T-SE-LIC License

DXS-3610-54T Standard Image to Enhanced Image License
– Multicast Table Size: Up to 16K3
– IGMP v1. v2c. v3
– PIM-SM IPv4/IPv6
– PIM-DM
– Multicast Source Discovery Protocol (MSDP)
– PIM-Sparse-Dense Mode
– PIM-SSM
– DVMRP v3
– MLD v1/v2
– Label Distribution Protocol (LDP)
– Penultimate Hop Popping (PHP)
– Virtual Private Wire Service (VPWS)
– Virtual Private LAN Service (VPLS)
– BGP/MPLS VPN
– Multiprotocol extensions for BGP4
– Virtual Routing Forwarding (VRF)
– LSP MPLS Ping/Traceroute
– VCCV Ping/Traceroute
– L3 VPN: MPLS/BGP L3 VPN. MP-BGP. VRF aware application
– L3 Routing: BGP v4/v4+. IS-IS. IS-ISv6
– VRF Lite: BGPv4. OSPFv2. IPv4 Static Route
– RIPv1/2
– IP Directed Broadcast
– Bidirectional Forwarding Detection (BFD): BGP

?

D-Link DXS-3610-54S/SI 10G L3 Switch

48-port 10G SFP+. 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-to-back fan modules Layer 3 Stackable 10G Managed Switches
– 48 x 1/10 GbE SFP/SFP+ ports
– 6 x 40/100 GbE QSFP+/QSFP28 ports
– Switching Capacity 2.16 Tbps
– Physical Stacking up to 12 switches in a stack. up to 1200G stacking bandwidth. Virtual Stacking/Clustering of up to 32 units
– L3 Features: Static Routing (Max. 1K IPv4 entries. Max. 512 IPv6 entries). IP Interface (supports 256 interfaces). IPv6 Tunnelling. IPv6 Neighbour Discovery (ND). ARP (512 Static ARP. Supports Gratuitous ARP). IP Helper
– L2 Features: Spanning Tree Protocol: 802.1D STP. 802.1w RSTP. 802.1s MSTP. L2 Protocol Tunnelling. RSPAN mirroring. Port Mirroring. Flow Mirroring. Flow Control. – Multi-Chassis Ling Aggregation Group (MLAG). 802.1AX Ling Aggregation (Max. 32 groups per device. 12 ports per group). Ethernet Ring Protection Switching (ERP). 288K MAC address table and Jumbo Frame up to 9416 Bytes
– L3 Routing: Supports hardware routing entries shared by IPv4/IPv6 (Max. 32K IPv4 entries. Max. 16K IPv6 entries). Supports hardware L3 forwarding entries shared by IPv4/IPv6 (Max. 144K IPv4 entries. Max. 144K IPv6 entries). Route Redistribution. Graceful Restart (GR) Helper. Policy Based Route. Bidirectional Forwarding Detection (BFD). OSPF (OSPFv2/v3). RIP (RIPv1/v2. RIPng). VRRPv2/v3
– L2 Multicast: IGMP Snooping. PIM Snooping. MLD Snooping. L2 Multicast Filtering
– VLAN: Private VLAN. ISM VLAN (Multicast VLAN). GVRP. VLAN Group (Max. 4K static VLAN groups. Max. 4094VIDs). VLAN Translation. VLAN Trunking. MAC-based VLAN. Port-based VLAN. Double VLAN (Q-in-Q). 802.1v Protocol-based VLAN. 802.1Q
– AAA: Web-based Access Control (WAC). MAC-based Access Control (MAC). Compound Authentication. Microsoft NAP. Authentication Database Failover. Trusted Host. Guest VLAN. 802.1X Authentication (Identity-driven Policy (VLAN/ACL/QoS) Assignment. Supports port-based access control. Supports host-based access control. Dynamic VLAN assignment
– Quality of Service (QoS) – Congestion Control (WRED). Bandwidth Control. Committed Information Rate (CIR). Queue handling. 8 queues per port. 802.1p QoS. Three Colour Marker (trTCM. srTCM)
– Access Control List (ACL). RADIUS and TACACS+ authentication
– Management: Web-based GUI. CLI. Telnet Server/Client. TFTP Client. FTP Client. Traffic Monitoring. SNMP (Supports v1/v2c/v3). SNMP Trap. System Log. DHCP Client. DHCP Server. DHCP Relay options 12. 60. 61. 82. Multiple Image. Multiple Configuration. Flash File System. Microsoft® Network Load Balancing (NLB). Switch Resource Management (SRM). sFlow. DNS Resolver. CPU Monitoring. MTU Setting. Traceroute and Ping. DNS Relay. SMTP. DHCP Auto Configuration. SNTP. RCP (Remote Copy Protocol). RMONv1. RMONv2. Trusted Host. Password encryption. Debug command. IPv6 Stateless Address Auto-configuration (SLAAC). D-Link Discover Protocol (DDP). D-Link License Management System (DLMS). OpenFlow v1.3
– Security: Broadcast/Multicast/Unicast Storm Control. D-Link Safeguard Engine. SSH (supports v2. supports IPv4/v6 access). SSL (support TLS 1.2. supports IPv4/v6 access). ARP Spoofing Prevention (Max. 64 entries). BPDU Attack Protection. DOS Attack Prevention. IP-MAC-Port Binding (IMPB). DHCP Server Screening. Dynamic ARP Inspection. IP Source Guard. DHCP Snooping. IPv6 Snooping. DHCPv6 Guard. IPv6 Route Advertisement (RA) Guard. Traffic segmentation
– MTBF 94.262 hours
– Ventilation: 5 x fans. Acoustics Max 79.4 dB(A). Min 65.3 dB(A)
– Weight 9.80 kg
– 19-inch standard rack-mount width. 1U height. Dimension 441×487.44×43.5mm
?

D-Link DXS-3610-54S-SE-LIC License

DXS-3610-54S Standard Image to Enhanced Image License
-Multicast Table Size: Up to 16K3
-IGMP v1. v2c. v3
-PIM-SM IPv4/IPv6
-PIM-DM
-Multicast Source Discovery Protocol (MSDP)
-PIM-Sparse-Dense Mode
-PIM-SSM
-DVMRP v3
-MLD v1/v2
-Label Distribution Protocol (LDP)
-Penultimate Hop Popping (PHP)
-Virtual Private Wire Service (VPWS)
-Virtual Private LAN Service (VPLS)
-BGP/MPLS VPN
-Multiprotocol extensions for BGP4
-Virtual Routing Forwarding (VRF)
-LSP MPLS Ping/Traceroute
-VCCV Ping/Traceroute
-L3 VPN: MPLS/BGP L3 VPN. MP-BGP. VRF aware application
-L3 Routing: BGP v4/v4+. IS-IS. IS-ISv6
-VRF Lite: BGPv4. OSPFv2. IPv4 Static Route
-RIPv1/2
-IP Directed Broadcast
-Bidirectional Forwarding Detection (BFD): BGP
