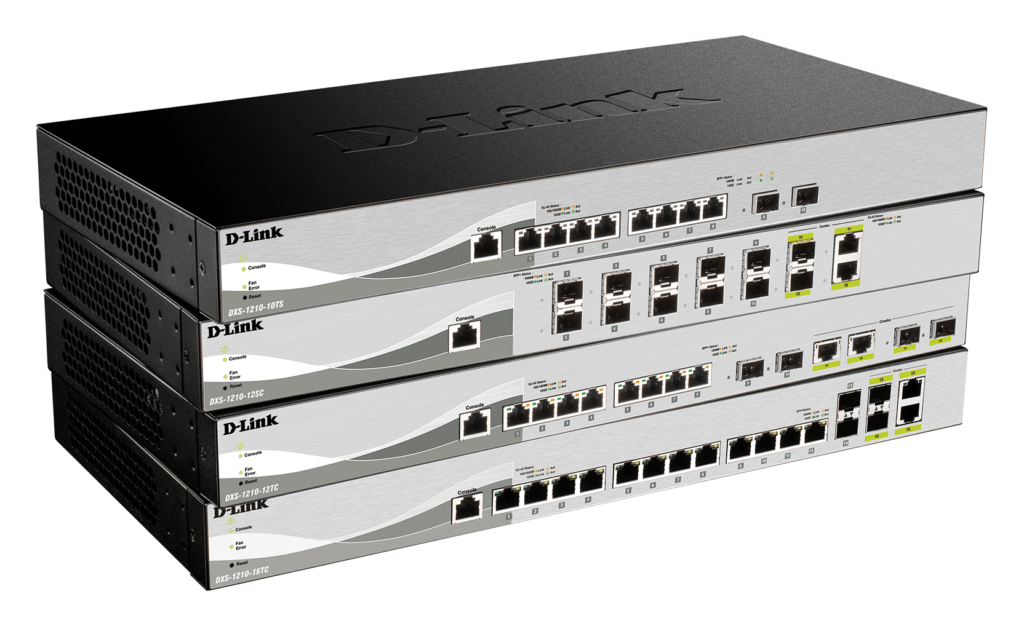

D-Link DXS-1210-16TC Smart Managed Switch
16 Port Smart Managed Switch including 12x10G ports 2xSFP+ & 2 x Combo 10GBase-T/SFP+
– 12 x 10/100/1000/10000Mbps
– 2 x 10G SFP+ ports Auto-Negotiating Ports
– 2 x 10GBase-T/SFP+ Combo Auto-Negotiating Ports
– Switching Capacity 320 Gbps
– Advance power saving features
– Half-/Full-Duplex auto-negotiation Auto MDI/MDIX
– IEEE 802.3x Flow Control
– IEEE 802.1AX and 802.3ad Link Aggregation
– Asymmetric VLAN
– Traffic segmentation
– Port based bandwidth control
– Jumbo frame 9216 Bytes
– Packet Forwarding Rate 178.56
– 802.1p priority queues
– MAC Address table size 16k
– Static MAC Addresses 1K
– Static multicast addresses 128
– MAC/IP-based ACL 1000 rules
– LLDP LLDP-MED Smart Binding Traffic Segmentation
– IPv6 configurations
– D-Link Safeguard Engine
– Smart Console Utility web based management compact CLI
– D-Link Network Assistant (DNA)
– 19″ Rackmount Installation
– IEEE 802.3az EEE
D-Link DXS-1210-28S Gigabit Smart Switches
24-port 10G SFP+. 4-port 10GBASE-T Smart Managed Switch
– 24 x 10G SFP+ ports
– 4 x 10GBASE-T ports
– Switching Capacity 560 Gbps
– Layer 3 Features: Static Route (Max. 64 IPv4 entries. Max. 64 IPv6 entries). IP Interface (Supports 8 IPv4/IPv6 interfaces). ARP (768 Static ARP). IPv6 Neighbour Discovery (ND)
– Layer 2 Features: IGMP Snooping. MLD Snooping. Flow Control. Port Mirroring. 802.3ad Link Aggregation (Max. 8 groups/8 ports per group). Loopback Detection. Spanning Tree Protocol: 802.1D STP. 802.1w RSTP. 802.1s MSTP. Ethernet Ring Protection Switching (ERPS). 32K MAC address table. 256 Static MAC addresses and Jumbo Frame up to 12.288 Bytes
– Quality of Service (QoS) Bandwidth Control. Queue Handling. 8 queues per port. 802.1p Priority Queue
– Management: Web-based GUI (IPv4/IPv6). Full Command Line Interface (CLI) through Telnet. SSH and the console port. D-Link Network Assistant Utility (DNA)
– Access Control List (ACL)
– Security: Broadcast/Multicast/Unicast Storm Control. D-Link Safeguard Engine. DHCP Server Screening. Port Security. Duplicate Address Detection (DAD). SSL (v1/v2/v3. IPv4/IPv6). DoS Attack Prevention. Traffic segmentation
– VLAN Asymmetric VLAN. Auto surveillance VLAN. Voice VLAN. 4K VLAN Groups
– Access Control. Authentication for management access (local/RADIUS)
– D-Link Green V3.0 Technology. IEEE 802.3az Energy-Efficient Ethernet (EEE)
– Acoustic High speed: 52.3 dB(A). Low speed: 40.2 dB(A)
– Ventilation 2 x Smart Fan
– Weight 3.27 kg
– Dimension 440×209.5x44mm
D-Link DXS-1210-28T Gigabit Smart Switches
24-port 10GBASE-T + 4-port 10/25G SFP28 Smart Managed Switch
– 24 x 10GBASE-T ports
– 4 x 10/25G SFP28 ports
– Switching Capacity 680 Gbps
– Layer 3 Features: Static Route (Max. 64 IPv4 entries. Max. 64 IPv6 entries). IP Interface (Supports 8 IPv4/IPv6 interfaces). ARP (768 Static ARP). IPv6 Neighbour Discovery (ND)
– Layer 2 Features: IGMP Snooping. MLD Snooping. Flow Control. Port Mirroring. 802.3ad Link Aggregation (Max. 8 groups/8 ports per group). Loopback Detection. Spanning Tree Protocol: 802.1D STP. 802.1w RSTP. 802.1s MSTP. Ethernet Ring Protection Switching (ERPS). 32K MAC address table. 256 Static MAC addresses and Jumbo Frame up to 12.288 Bytes
– Quality of Service (QoS) Bandwidth Control. Queue Handling. 8 queues per port. 802.1p Priority Queue
– Management: Web-based GUI (IPv4/IPv6). Full Command Line Interface (CLI) through Telnet. SSH and the console port. D-Link Network Assistant Utility (DNA)
– Access Control List (ACL)
– Security: Broadcast/Multicast/Unicast Storm Control. D-Link Safeguard Engine. DHCP Server Screening. Port Security. Duplicate Address Detection (DAD). SSL (v1/v2/v3. IPv4/IPv6). DoS Attack Prevention. Traffic segmentation
– VLAN Asymmetric VLAN. Auto surveillance VLAN. Voice VLAN. 4K VLAN Groups
– Access Control. Authentication for management access (local/RADIUS)
– D-Link Green V3.0 Technology. IEEE 802.3az Energy-Efficient Ethernet (EEE)
– Acoustic High speed: 51.9 dB(A). Low speed: 40.0 dB(A)
– Ventilation 2 x Smart Fan
– Weight 3.07 kg
– Dimension 440×209.5x44mm
?
D-Link DXS-1210-10TS Smart Managed Switch
10 Port Smart Managed Switch including 8x10G ports & 2xSFP+
– 8 x 10/100/1000/10000Mbps
– 2 x 10G SFP+ ports Auto-Negotiating Ports
– Switching Capacity 200 Gbps
– Advance power saving features
– Half-/Full-Duplex auto-negotiation Auto MDI/MDIX
– IEEE 802.3x Flow Control
– IEEE 802.1AX and 802.3ad Link Aggregation
– Asymmetric VLAN
– Traffic segmentation
– Port based bandwidth control
– Jumbo frame 9216 Bytes
– Packet Forwarding Rate 148.8
– 802.1p priority queues
– MAC Address table size 16k
– Static MAC Addresses 1K
– Static multicast addresses 128
– MAC/IP-based ACL 512 rules
– LLDP LLDP-MED Smart Binding Traffic Segmentation
– IPv6 configurations
– D-Link Safeguard Engine
– Smart Console Utility web based management compact CLI
– D-Link Network Assistant (DNA)
– 19″ Rackmount Installation
– IEEE 802.3az EEE
D-Link DXS-1210-12SC Smart Managed Switch
12 Port Smart Managed Switch including 10×10 SFP+ ports & 2 x Combo 10GBase-T/SFP+ uplink ports
– 10 x 10G SFP+ ports
– 2 x 10GBase-T/SFP+ Combo Auto-Negotiating Ports
– Switching Capacity 240 Gbps
– Advance power saving features
– Half-/Full-Duplex auto-negotiation Auto MDI/MDIX
– IEEE 802.3x Flow Control
– IEEE 802.1AX and 802.3ad Link Aggregation
– Asymmetric VLAN
– Traffic segmentation
– Port based bandwidth control
– Jumbo frame 9216 Bytes
– Packet Forwarding Rate 178.56
– 802.1p priority queues
– MAC Address table size 16k
– Static MAC Addresses 1K
– Static multicast addresses 128
– MAC/IP-based ACL 512 rules
– LLDP LLDP-MED Smart Binding Traffic Segmentation
– IPv6 configurations
– D-Link Safeguard Engine
– Smart Console Utility web based management compact CLI
– D-Link Network Assistant (DNA)
– 19″ Rackmount Installation
– IEEE 802.3az EEE+D222
D-Link DXS-1210-12TC Smart Managed Switch
12 Port Smart Managed Switch including 8x10G ports 2 x SFP+ & 2 x Combo 10GBase-T/SFP+
– 8 x 10/100/1000/10000Mbps
– 2 x 10G SFP+ ports Auto-Negotiating Ports
– 2 x 10GBase-T/SFP+ Combo Auto-Negotiating Ports
– Switching Capacity 240 Gbps
– Advance power saving features
– Half-/Full-Duplex auto-negotiation Auto MDI/MDIX
– IEEE 802.3x Flow Control
– IEEE 802.1AX and 802.3ad Link Aggregation
– Asymmetric VLAN
– Traffic segmentation
– Port based bandwidth control
– Jumbo frame 9216 Bytes
– Packet Forwarding Rate 178.56
– 802.1p priority queues
– MAC Address table size 16k
– Static MAC Addresses 1K
– Static multicast addresses 128
– MAC/IP-based ACL 512 rules
– LLDP LLDP-MED Smart Binding Traffic Segmentation
– IPv6 configurations
– D-Link Safeguard Engine
– Smart Console Utility web based management compact CLI
– D-Link Network Assistant (DNA)
– 19″ Rackmount Installation
– IEEE 802.3az EEE

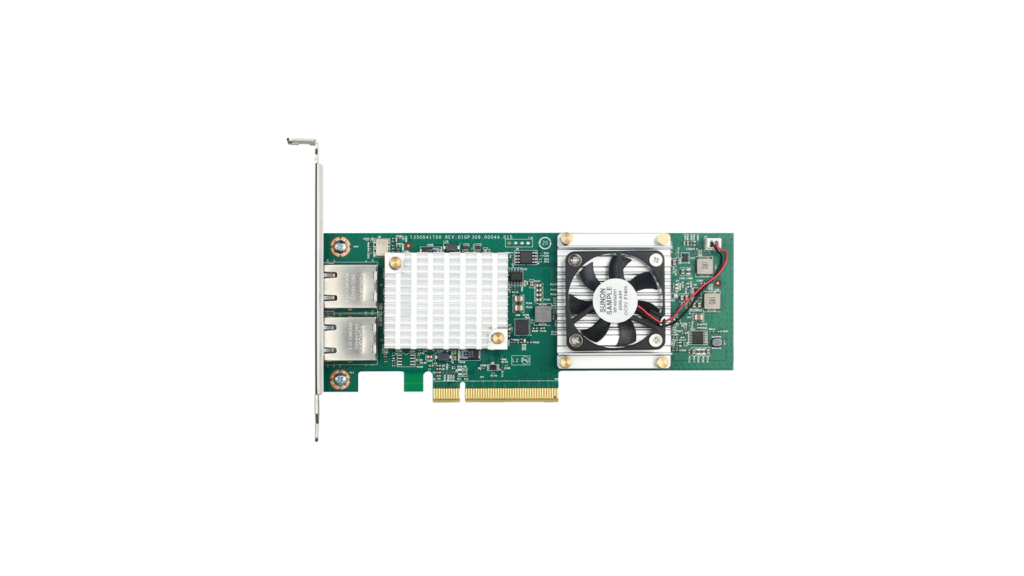

D-Link DXE-820T 3G/4G Mobile
Dual Port 10GBASE-T RJ45 PCI Express Adapter
– Universal Bus supporting 3.3 V operation
– Compliant with IEEE 802.3an 10 Gbps Ethernet over Unshielded Twisted Pair (UTP) standards:
o Supports up to 100 m of Cat6A or better
o Supports Cat6 and Cat5e cables compliant with Link Segment specifications
o Supports Auto-Negotiation (100BASE-T 1000BASE-TX 10GBASE-T)
– Supports Full Duplex at 10 Gbps
– Supports 802.3x flow control
– Supports 802.1Q VLAN Tagging
– Supports 802.3ad LACP
– Supports Smart Load Balancing Teaming
– RJ45 LED indicators: Activity and Link/Speed
– Driver support for:
o Windows Server 2008(X86 X64)/2008 R2(X64)
o Windows Server 2012
o RHEL 6.4/6.5(X64) RHEL 5.9(X64)
o SLES 11.2/11.3(X64)
o Solaris 11/11.1
D-Link DXS-1100-10TS Smart Managed Switch
10 Port Smart Managed Switch including 8x10G ports & 2xSFP+
– 8 x 10/100/1000/10000Mbps
– 2 x 10G SFP+ ports Auto-Negotiating Ports
– Switching Capacity 200 Gbps
– Advance power saving features
– Half-/Full-Duplex auto-negotiation Auto MDI/MDIX
– IEEE 802.3x Flow Control
– IEEE 802.1AX and 802.3ad Link Aggregation
– Asymmetric VLAN
– Traffic segmentation
– Port based bandwidth control
– Jumbo frame 9216 Bytes
– Packet Forwarding Rate 148.8
– 802.1p priority queues
– MAC Address table size 16k
– Static MAC Addresses 512
– Static multicast addresses 512
– MAC/IP-based ACL 512 rules
– LLDP LLDP-MED Smart Binding Traffic Segmentation
– IPv6 configurations
– D-Link Safeguard Engine
– Smart Console Utility web based management
– D-Link Network Assistant (DNA)
– Dual Images
– 19″ Rackmount Installation
– IEEE 802.3az EEE

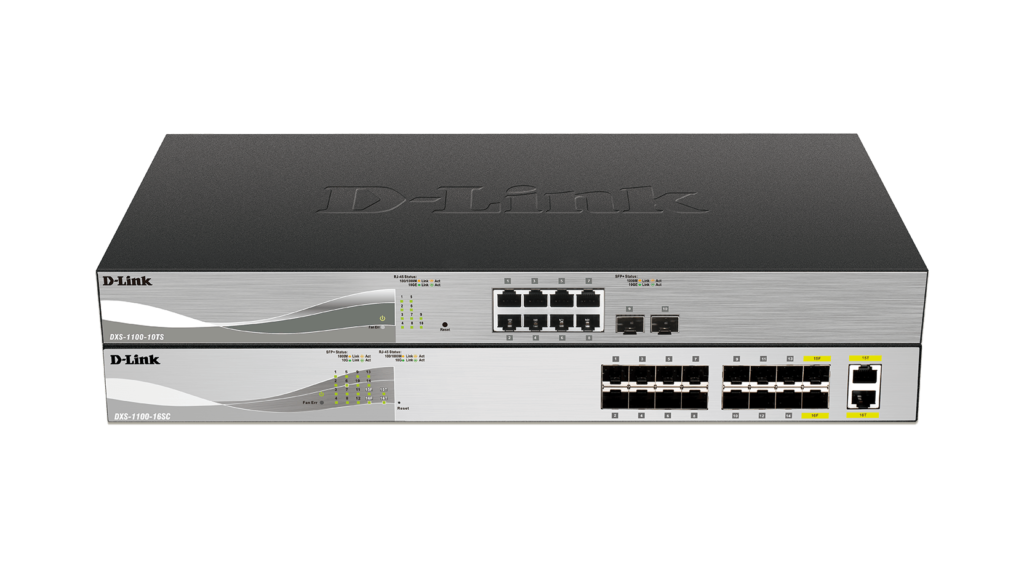

D-Link DXS-1100-16SC Smart Managed Switch
16 Port Smart Managed Switch including 14x10G SFP+ Interface ports & 2xCombo 10GBase-T /SFP+
– 14 x 10G SFP+
– 2 x 10G SFP+ Combo ports
– Switching Capacity 320 Gbps
– Max Packet Forwarding Rate 238 Mpps
– Advance power saving features
– Auto MDI/MDIX
– IEEE 802.3x Flow Control
– IEEE 802.1AX and 802.3ad Link Aggregation
– Voice VLAN
– Auto Surveillance VLAN
– Asymmetric VLAN
– Traffic segmentation
– Port based bandwidth control
– Jumbo frame 9216 Bytes
– 802.1p priority queues
– Static MAC Addresses 512
– Static multicast addresses 512
– MAC/IP-based ACL 512 rules
– LLDP LLDP-MED Traffic Segmentation
– IPv6 configurations
– D-Link Safeguard Engine
– Web based management
– D-Link Network Assistant (DNA)
– Dual Images
– 17″ Rackmount Installation
– IEEE 802.3az EEE
D-Link DWS-316024TCAP12-LIC 3G/4G Mobile
12 AP upgrade for DWS-3160-24TC
