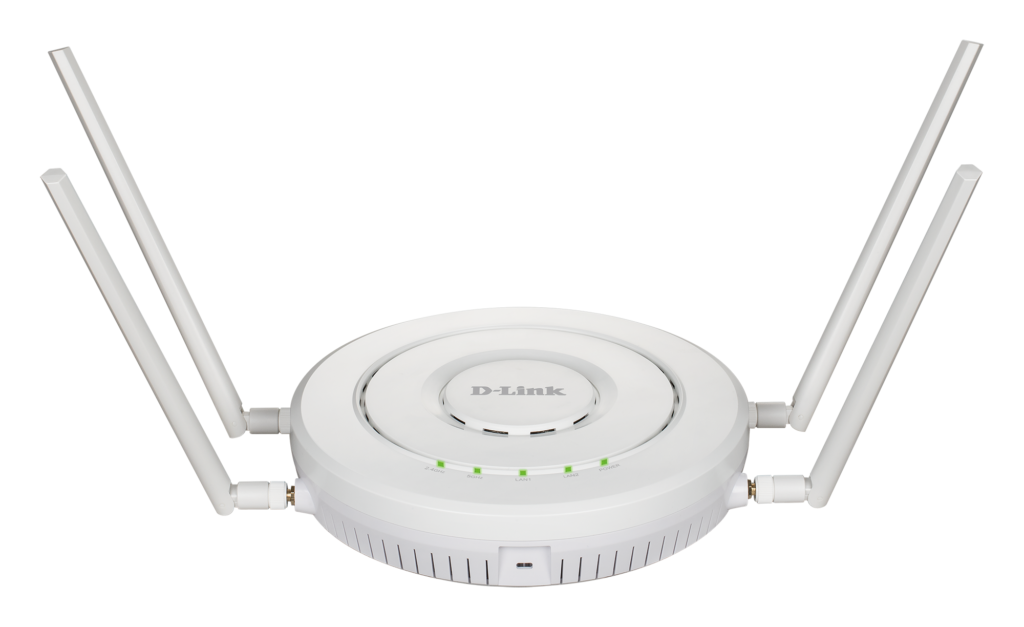

D-Link DWL-8620APE Wireless Adapter
Wireless AC2600 Wave 2 Dual-Band Unified Access Point with External Antennas
– AC 2600Mbps Dual-band Wireless LAN Indoor Access Point
– Concurrent 2.4GHz/5GHz 802.11n & 802.11ac(11a/g) Wireless Connectivity
– Leverages the full potential of 802.11ac Wave 2 by using a 4 x 4 antenna implementation with 4 detachable external omnidirectional antennas allowing high combined data rates of 2533 Mbps over the air.
– 4x 4 11n 2.4G MIMO and 4×4 11ac MU-MIMO
– Up to 256 QAM on both 2.4GHz & 5 GHz bands
– Supports 20MHz/40MHz/80MHz/80+80MHz/160MHz channels
– 2 x 10/100/1000 support LACP and Static Link Aggregation(LAN 1 supports 802.3at PD
– 2 x Gigabit ports
– Band Steering Airtime Fairness Beamforming
– 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
– WPA-Personal and WPA2 Enterprise
– IEEE 802.1x
– MAC Address Access Control
– AES
– Support 802.3at Power Over Ethernet
– Web-based Configuration & Management
– Plenum rated metal housing
– Works with DWC-1000 & DWC-2000(for supported FWs)

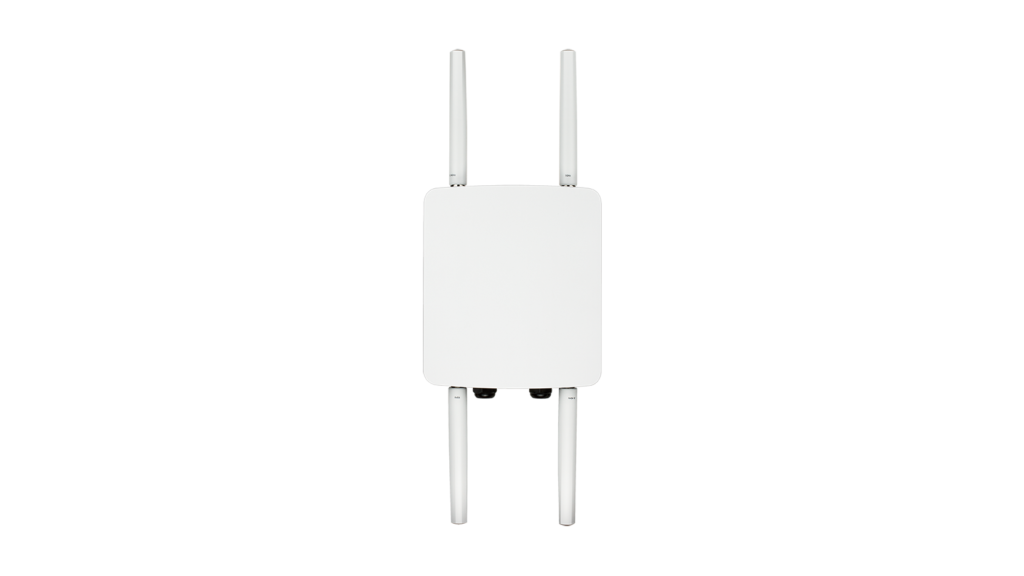

D-Link DWL-8710AP Wireless Adapter
Wireless AC Dual-Band Unfied Access Point
-2×2 dual 802.11ac radio design able to achieve 867Mbps PHY rate
-2×2 2.4GHz interface is able to achieve 300Mbps PHY rate
-Beaforming technology enables longer reach thus covering more area with less devices
-Flexible external antenna design
-Dual GbE LAN port allowing either cascading connection to a nearby AP or provide bridging to another wired network devices
-Band steering technology enables the device to automatically balance the number of users on each of its two radio by encouraging dual-band capable clients to connect to the 5GHz radio
-Pole mount
-Powered by 802.3at PoE
-Rugged IP67 chassis design
-Operating temperature : -30 ~ 60C

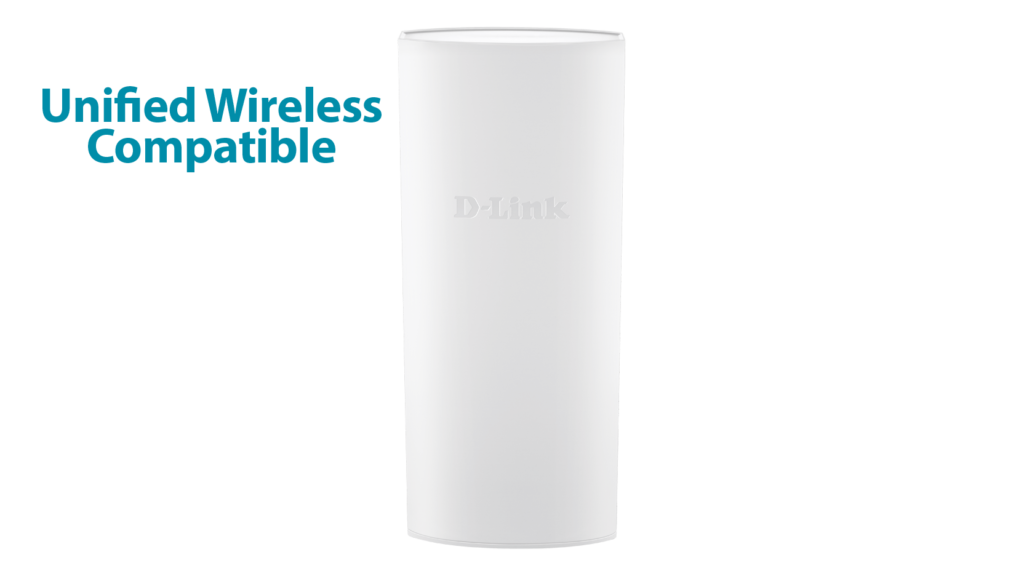

D-Link DWL-6700AP Wireless Adapter
Unified Simultaneous Dual-Band PoE Outdoor 5GHz Bridging Access Point
– Compatible with IEEE 802.11a/11b/802.11g/802.11n 2.4GHz and 5GHz Standard
– N600 Dual band concurrent operation radio
– Non-standard PoE 24V / 1A
– Up to 300 Mbps data rate
– External High Gain antenna design.
– Integrated two 8dBi directional antennas on 5 GHz radio for Bridge-to-Bridge WDS/backhauling applications.
– Integrated two 3dBi Omni-directional antennas on 2.4 GHz radio for local Wi-Fi accesses.
– IP55 waterproof case
– Pole Mount design
– Compatible with the DWC-1000 and DWC-2000
D-Link DWL-7620AP Wireless Adapter
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
– AC 2200Mbps tri-band Wireless LAN Indoor Access Point
– Concurrent 2.4GHz/5GHz 802.11n & 802.11ac(11a/g) Wireless Connectivity
– 2×2 Tri-band internal antennas
– 2 x 2 11n 2.4G MIMO and 2×2 11ac MU-MIMO
– 2.4GHz 400 Mbps (40 MHz channel bandwidth with 256-QAM modulation
– 5 GHz 867 Mbps (80 MHz channel bandwidth with 256-QAM modulation) 5 GHz 867 Mbps (80 MHz channel bandwidth with 256-QAM modulation)
– 2 x 10/100/1000 Auto-Sensing Gigabit PoE Ethernet LAN port (LAN 1 supports 802.3at PD
– 1 x RJ-45 console port
– Forced Roaming
– 2×2 MU-MIMO
– 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
– WPA-Personal and WPA2 Enterprise
– Support Up to 16 virtual APs(VAP) per radio
– IEEE 802.1x
– MAC Address Access Control
– AES
– Support 802.3at Power Over Ethernet
– Web-based Configuration & Management
– Plenum rated metal housing
– Works with DWC-1000 & DWC-2000(for supported FWs)

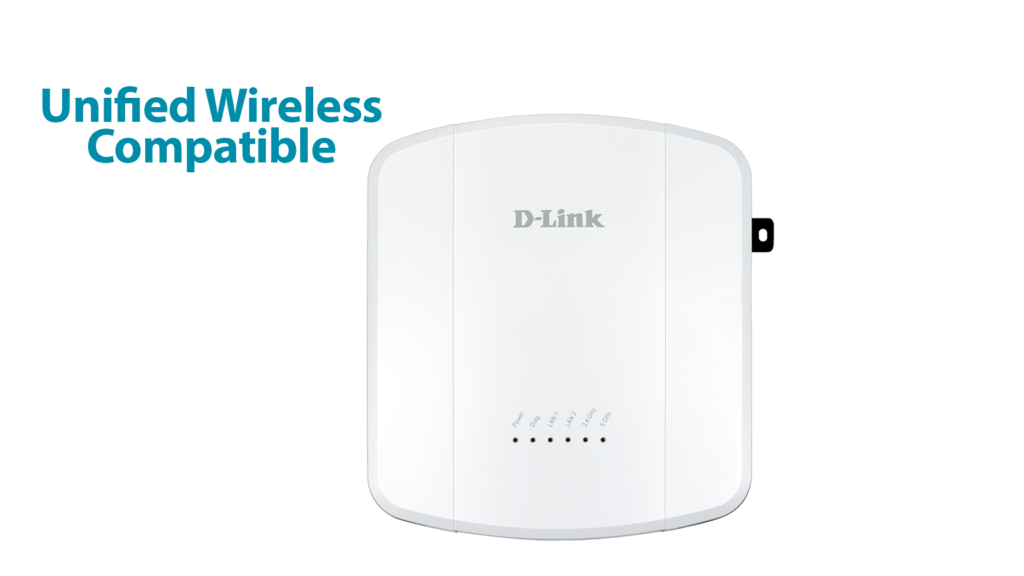

D-Link DWL-8610AP Wireless Adapter
Wireless AC1750 Simultaneous Dual-Band PoE Access Point
– 1750Mbps Wireless LAN Indoor Access Point
– Concurrent 2.4Ghz/5Ghz 802.11n (11a/g) Wireless Connectivity
– 5GHz at 1300Mbps 3Tx3R solution 11ac/a/n compatibility
– 2.4GHz 450 Mbps 3Tx3R solution 11b/g/n compatibility
– 2 x 10/100/1000 Auto-Sensing Gigabit PoE Ethernet LAN port
– 1 x RJ-45 console port
– Plenum rated metal housing
– Operation Modes: Access Point (AP) Point-to- Point (PtP) Bridge Point-to-MultiPoint (PtMP) Bridge1
– Autosenses & Adjusts Speed to conditions for Maximum Performance
– Security Features
64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
WPA/WPA2
IEEE 802.1x
MAC Address Access Control
AES
– Support 802.3af Power Over Ethernet
– Web-based Configuration & Management
– 3 internal 2.4GHz band Antennas
– 3 internal 5GHz band Antennas
1WDS bridge with another DAP-2695 only.
*** see “Antenna” section for information on ANT70-1400N which can be paired for 5GHz building. Other 2.4GHz also available ***
D-Link DWL-6610AP Wireless Adapter
Unified AC1200 Simultaneous Dual-Band PoE Access Point
– 1200Mbps Wireless LAN Indoor Access Point
– Concurrent 2.4GHz/5GHz 802.11n (11a/g) Wireless Connectivity
– 5GHz at 867Mbps 2Tx2R solution 11ac/a/n compatibility
– 2.4GHz 300 Mbps 3Tx3R solution 11b/g/n compatibility
– 1 x 10/100/1000 Auto-Sensing Gigabit PoE Ethernet LAN port
– 1 x RJ-45 console port
– Plenum rated metal housing
– Operation Modes: Access Point (AP) Point-to- Point (PtP) Bridge Point-to-MultiPoint (PtMP) Bridge1
– Autosenses & Adjusts Speed to conditions for Maximum Performance
– Security Features
64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
WPA/WPA2
IEEE 802.1x
MAC Address Access Control
AES
– Support 802.3af Power Over Ethernet
– Web-based Configuration & Management
– 2 internal 2.4GHz band Antennas
– 2 internal 5GHz band Antennas

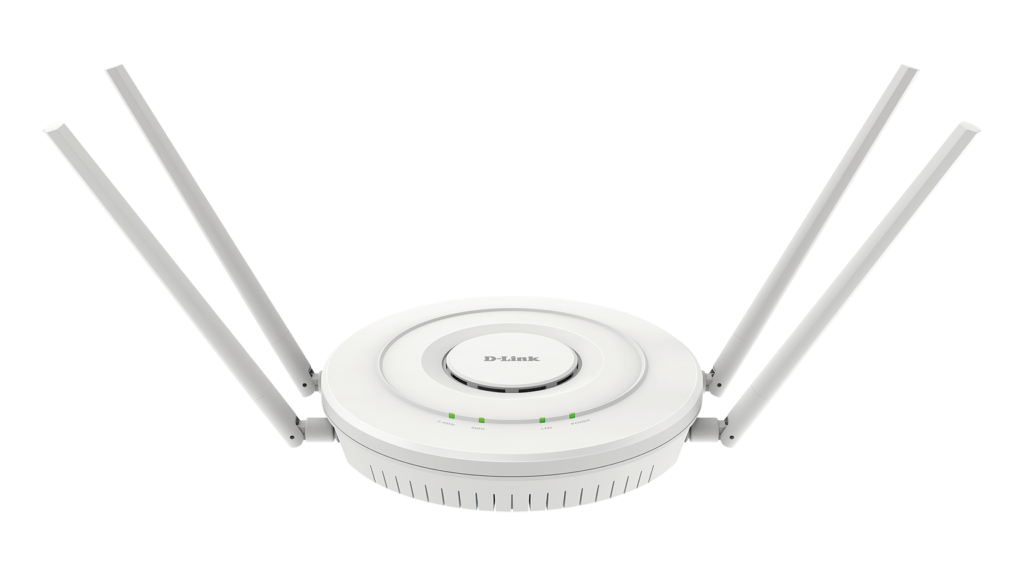

D-Link DWL-6610APE Wireless Adapter
Unified Wireless AC1200 Concurrent Dual-band PoE Access Point with External Antennas
– 1200Mbps Wireless LAN Indoor Access Point
– Concurrent 2.4GHz/5GHz 802.11n & 802.11ac(11a/g) Wireless Connectivity
– 5GHz at 867Mbps 2Tx2R solution 11ac/a/n compatibility
– 2.4GHz 300 Mbps 3Tx3R solution 11b/g/n compatibility
– 1 x 10/100/1000 Auto-Sensing Gigabit PoE Ethernet LAN port
– 1 x RJ-45 console port
– Plenum rated metal housing
– Operation Modes: Access Point (AP) Point-to- Point (PtP) Bridge Point-to-MultiPoint (PtMP) Bridge1
– Autosenses & Adjusts Speed to conditions for Maximum Performance
– Security Features
– 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
– WPA/WPA2
– IEEE 802.1x
– MAC Address Access Control
– AES
– Support 802.3af Power Over Ethernet
– Web-based Configuration & Management
– 2 internal 2.4GHz band Antennas
– 2 internal 5GHz band Antennas
– 2 external 2.4GHz 3 dBi Omni-directional antennas
– 2 external 5GHz 4 dBi Omni-directional antennas
D-Link DWL-6620APS Wireless Adapter
Wireless AC 1300 Wave2 Dual-Band Unified Access Point With Smart Antenna
– AC 1300Mbps Wireless LAN Indoor Access Point
– Concurrent 2.4GHz/5GHz 802.11n & 802.11ac(11a/g) Wireless Connectivity
– 2 x dual band smart antenna
– 5GHz at 867Mbps 11ac/a/n compatibility (80 MHz channel bandwidth with 256-QAM modulation)
– 2.4GHz 400 Mbps 11b/g/n compatibility(40 MHz channel bandwidth with 256-QAM modulation)
– 1 x 10/100/1000 Gigabit PoE Ethernet LAN port
– 1 x RJ-45 console port
– Forced Roaming
– 2×2 MU-MIMO
– 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
– WPA-Personal and WPA2 Enterprise
– Support Up to 16 virtual APs(VAP) per radio
– IEEE 802.1x
– MAC Address Access Control
– AES
– Support 802.3at Power Over Ethernet
– Web-based Configuration & Management
– Plenum rated metal housing
– Works with DWC-1000 & DWC-2000(for supported FWs)
D-Link DWL-2600AP/E Wireless Adapter
Unified Wireless N PoE Access Point
– Compatible with IEEE 802.11b/g/n 2.4GHz Standard
– Discrete Lightweight Ceiling mount housing design only 260g in weight (excluding wires).
– IEEE 802.3af compliant 100BaseTX PoE Port
– Up to 16 MSSIDs
– Supports MAC Filter and RADIUS authentication
– Security Features
WPA (TKIP) WPA2(AES) PSK and EAP
IEEE 802.1x
MAC Address Access Control
Legacy 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
– Centralised management via DWC-1000 DWS-3160 and DWS-4026 Wireless Switch
– Internal Omni-Directional Antenna Only
– Functions as a standalone Access Point or in conjunction with DWC-1000 DWS-3160 and DWS-4026 Wireless Switch
– Integrated RFID recognition for AeroScout RFID device to track wireless client

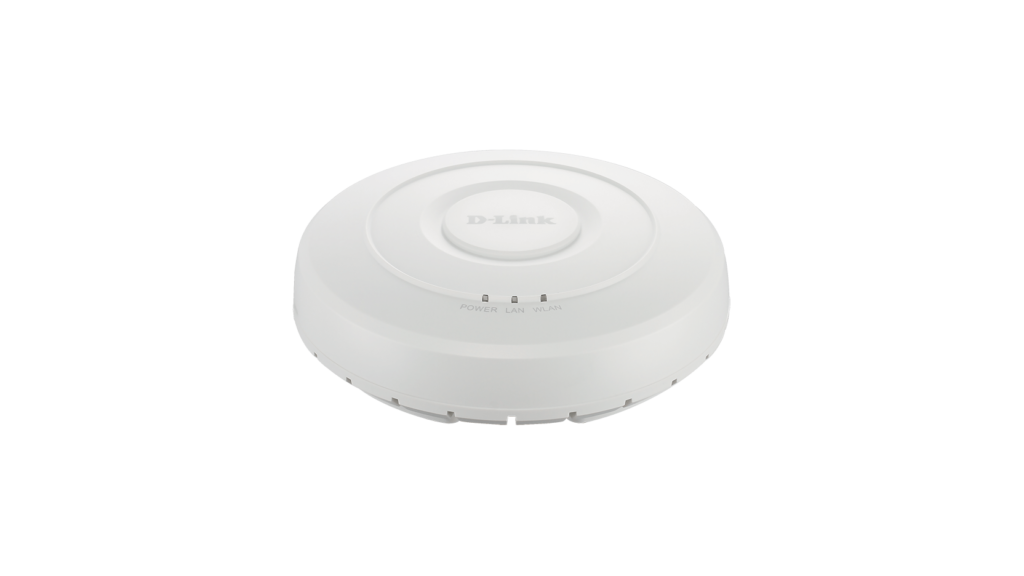

D-Link DWL-3610AP Wireless Adapter
Wireless Selectable Dual-Band Unified Access Point
– Selectable 2.4GHz/5GHz 802.11n Wireless Connectivity
– 1 x 10/100/1000 Auto-Sensing Gigabit PoE Ethernet LAN port
– 1 x RJ-45 console port
– 2 internal 2.4GHz band Antennas
– 2 internal 5GHz band Antennas
– Plenum rated metal housing
– Operation Modes: Access Point (AP) Point-to- Point (PtP) Bridge Point-to-MultiPoint (PtMP) Bridge1
– Autosenses & Adjusts Speed to conditions for Maximum Performance
– Security Features
– 64/128/152-Bit Wired Equivalent Privacy (WEP) Data Encryption
– WPA/WPA2
– IEEE 802.1x
– MAC Address Access Control
– AES
– Support 802.3af Power Over Ethernet
– Web-based Configuration & Management
